2010 Ford Expedition 5.4L V8 Engine
5.4L • V8 • 3-Valve • 330 CID • SOHC
The 2010 Ford Expedition is equipped with a 5.4L 3-valve V8 designed to provide the power and low-end torque expected from a full-size SUV. If you need a replacement engine, verifying the engine size, VIN, fuel configuration, drivetrain and vehicle application is important before purchasing.

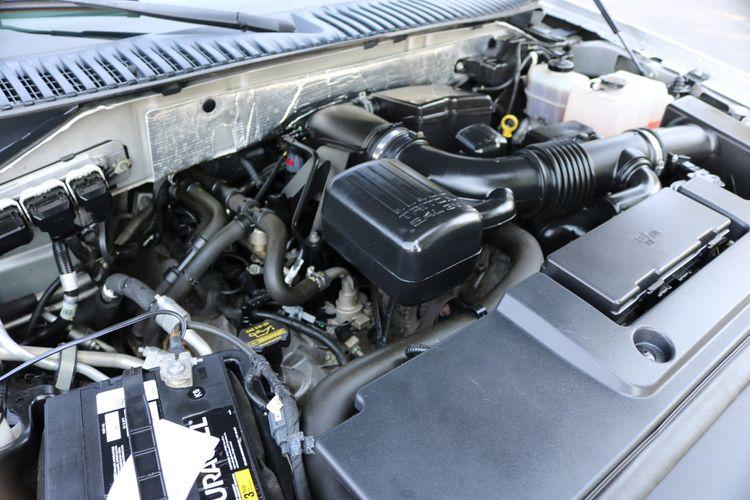

2010 Ford Expedition 5.4L Engine Overview
The 2010 Ford Expedition engine is a 5.4-liter V8 with a displacement of 330 cubic inches. The engine uses a single overhead camshaft configuration with three valves per cylinder and variable camshaft timing.
Ford specifications list a cast-iron engine block with aluminum cylinder heads, coil-on-plug ignition and a 9.8:1 compression ratio. The engine is naturally aspirated and uses electronic fuel injection.
The 5.4L V8 produces 310 horsepower at 5,100 rpm and 365 lb-ft of torque at 3,600 rpm in the 2010 Expedition. It was paired with a six-speed automatic transmission.
When replacing an engine, the displacement alone isn't enough to confirm compatibility. The VIN, engine code, fuel system, emissions configuration, drivetrain and vehicle configuration should all be checked before ordering.
2010 Ford Expedition 5.4L Engine Specifications
Key specifications for the 2010 Ford Expedition 5.4L V8 engine, including displacement, configuration, power and engine identification details.
Need a Used 2010 Ford Expedition Engine?
Replacing an engine can be a major repair, especially when the vehicle is still being used for towing, transportation or everyday driving.
A used engine can provide a practical replacement option when the original engine has suffered internal damage or when repairing the existing engine is no longer economical.
Common reasons owners may begin looking for a replacement include:
- Severe internal engine damage
- Low compression
- Excessive oil consumption
- Engine knocking or abnormal mechanical noise
- Major overheating damage
- Damaged cylinder heads or engine block
- Timing-related engine problems
- Excessive oil or coolant contamination
Before choosing a replacement, it is important to determine exactly which 5.4L configuration your Expedition requires.
Don’t guess based only on the year.

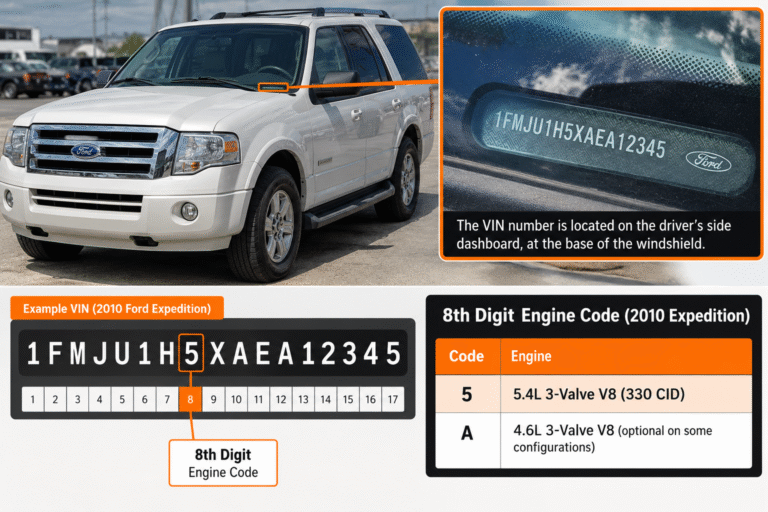

How to Identify the Correct 5.4L Engine
The most important step is confirming the vehicle’s identification information.
For 2010 Ford light trucks, Ford’s VIN guide identifies position 8 as the engine-code position, with code 5 corresponding to the 5.4L 3-valve V8 in the applicable VIN table.
Check these details:
01 — Model Year
Confirm that the vehicle is a 2010 model.
02 — Vehicle
Confirm that it is a Ford Expedition or Expedition EL.
03 — Engine Size
Confirm the 5.4L V8 application.
04 — VIN Engine Code
Check the 8th VIN position. Code 5 is associated with the 5.4L 3V V8 in Ford’s 2010 VIN information.
05 — Fuel Configuration
Verify whether the vehicle has the applicable gasoline/flex-fuel configuration.
06 — Drivetrain
Confirm whether the vehicle is 4×2 or 4×4.
Used Engine Options for the Ford Expedition
When searching for a replacement, you may encounter several different types of engine assemblies.
Used OEM Engine
A used OEM engine is removed from another vehicle and can be a practical replacement when the correct configuration is available.
Remanufactured Engine
A remanufactured engine has been rebuilt and inspected according to the rebuilder’s specifications. It can be a different purchasing option from a conventional used engine.
Long Block
A long block generally includes the major internal engine components and cylinder heads, but external accessories and some bolt-on components may not be included.
Complete Assembly
A more complete engine assembly may include additional components, but exactly what is included varies by supplier and donor vehicle.
Always confirm the included components before placing an order.
Why Choose AutomartAutoparts?
Finding the right used engine or transmission can be stressful, especially when you're not sure about compatibility, availability, or where to find the right replacement. Automart Auto Parts helps make the process simple. We have helped many customers find replacement engines and transmissions for a wide range of vehicles, and our parts specialists are here to help you identify the right option for your vehicle.
With so many used engines for sale online, finding the correct replacement can be difficult. Automart Auto Parts helps make the process simpler by helping customers identify appropriate used engine applications based on their vehicle information.
With multiple warehouse locations across the state, we can help customers connect with available parts closer to their area. Our network and inventory sources allow our team to check available replacement engines and transmissions based on your vehicle's requirements.
Trusted by Customers
We've helped many customers with their replacement engine and transmission needs, providing assistance throughout the process.
Multiple Warehouse Locations
With multiple warehouse locations across the state, our network helps us serve customers in different areas and check for available parts closer to them.
Fitment Assistance
Not sure which engine or transmission you need? Our parts specialists can help verify your vehicle and part information before you move forward.
Availability & Pricing
We can check current availability and provide pricing information based on the replacement part your vehicle requires.
A Simpler Way to Find Your Replacement Part
You don't have to spend hours comparing used motors for sale and trying to determine which engine will work with your vehicle.
Tell our team your vehicle's year, make, model, engine size and VIN when available. Our parts specialists can use that information to help identify the appropriate replacement application and check available options.
Whether you need a used engine for a car, truck or SUV, starting with accurate vehicle information makes it easier to narrow down the correct replacement.
Ford Expedition 5.4L Used Engine Near Me
Searching for a Ford Expedition engine near me can bring up many different replacement options, but location alone doesn’t guarantee that an engine will match your vehicle.
The more important question is:
Does the engine have the correct application and fitment?
Automart Auto Parts can help you check available replacement options based on your vehicle information rather than simply matching the words “5.4L V8.”
How It Works
Finding the right replacement engine or transmission is simple. Tell us about your vehicle and our parts specialists will help you find the right replacement option.
Tell Us Your Vehicle
Provide your vehicle's year, make, model and engine or transmission information. We may also ask for your VIN to help confirm compatibility.
Tell Us What You Need
Let us know whether you're looking for a used engine, replacement engine, used transmission or replacement transmission.
We Check Availability
Our parts specialists check available inventory and supplier options to help identify a suitable replacement for your vehicle.
Get Your Quote
Once an appropriate option is identified, our team can provide available pricing and relevant part details for you to review.
FAQ
What engine does the 2010 Ford Expedition use?
The 2010 Ford Expedition uses a 5.4L V8 engine with a 3-valve SOHC configuration. Ford lists the displacement as 330 cubic inches.
How much horsepower does the 2010 Expedition 5.4L have?
The 5.4L V8 is rated at 310 horsepower at 5,100 rpm and 365 lb-ft of torque at 3,600 rpm in the 2010 Expedition.
5.4L V8 Engine Design
What is the displacement of the 5.4L Expedition engine?
The engine has a displacement of 330 cubic inches, approximately 5,408 cc.
Is the 2010 Expedition 5.4L available with flex fuel?
Yes. Ford's 2010 Expedition material identifies the 5.4L 3-valve V8 as an FFV/flex-fuel application, and Ford's owner guide lists 87-octane gasoline or E85 for the engine.
Will any 5.4L Ford engine fit my Expedition?
No. A 5.4L engine from another Ford vehicle should not automatically be assumed to be interchangeable. Engine generation, VIN code, fuel configuration, emissions equipment, accessories and vehicle application should be verified before purchase.
