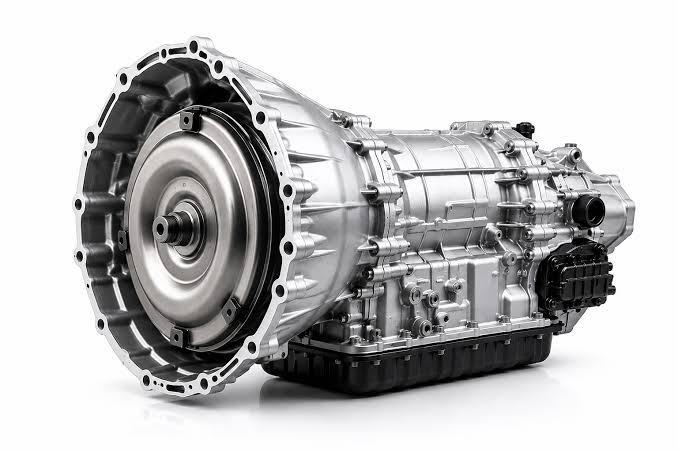

2006 Honda Pilot Transmission 3.5L – FWD Automatic
3.5L V6 • 5-Speed Automatic • FWD • BVLA
Looking for a replacement 2006 Honda Pilot transmission? This application is for the 3.5L V6 Pilot with a 5-speed automatic transmission and front-wheel drive.
The 2006 Pilot was available in both 2WD/FWD and VTM-4 4WD configurations, so confirming the drivetrain is important before ordering a replacement transmission. The FWD application is associated with the BVLA transmission family.
Have your VIN ready? We can help verify fitment.
2006 Honda Pilot Transmission Overview

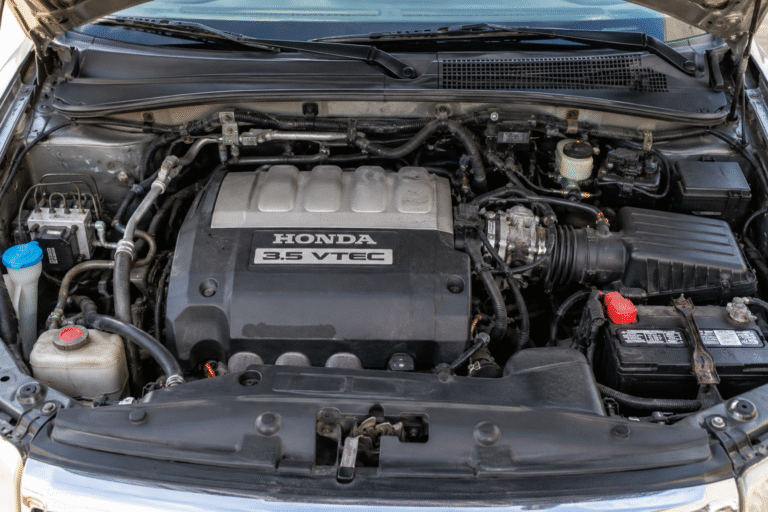

The 2006 Honda Pilot uses a 3.5-liter V6 engine paired with a 5-speed automatic transmission. Honda’s 2006 specifications list a 3,471 cc V6 producing 244 horsepower and 240 lb-ft of torque, with the 2WD model using a front-wheel-drive configuration.
For this page, we are specifically focusing on the 2006 Honda Pilot 3.5L FWD automatic transmission. This is important because Honda also offered the Pilot with VTM-4 four-wheel drive, and the AWD transmission is a different application.
A transmission replacement should therefore be matched using more than just the vehicle name. The year, 3.5L engine, automatic transmission and FWD drivetrain should all match the replacement unit.
For the 2006 FWD Pilot, transmission lookup information identifies the application as BVLA. If you’re unsure whether your vehicle uses this configuration, provide your VIN and vehicle information before purchasing.
2006 Honda Pilot 3.5L FWD Transmission Specs
Key specifications for the 2006 Honda Pilot 3.5L front-wheel-drive automatic transmission application. Verify your VIN and transmission identification before ordering.
| Year | 2006 |
| Make | Honda |
| Model | Pilot |
| Engine | 3.5L V6 |
| Displacement | 3,471 cc |
| Transmission | 5-Speed Automatic |
| Drive Type | Front-Wheel Drive (FWD) |
| FWD Transmission Code | BVLA |
| Transmission Type | Automatic Transaxle |
| Gear Ratios | 2.42 / 1.57 / 1.02 / 0.78 / 0.60 |
| Reverse Ratio | 1.89 |
Need a Transmission for Your 2006 Honda Pilot?
Finding the correct Honda Pilot transmission isn’t just about matching the 3.5L engine.
Your Pilot’s drivetrain matters.
If you have a 2006 Honda Pilot 3.5L FWD, send us your VIN or vehicle information and our parts team can help verify the correct transmission application before you order.
VIN-based fitment assistance • Used replacement options • Nationwide availability
How to Identify the Correct Honda Pilot Transmission
The 2006 Honda Pilot was sold with different drivetrain configurations. This makes transmission identification especially important.
The FWD/2WD model uses a different transmission application than the Pilot equipped with Honda’s VTM-4 four-wheel-drive system. Honda’s specifications show the 2WD LX separately from the VTM-4 models.
Check these details before ordering:
- Year: 2006
- Vehicle: Honda Pilot
- Engine: 3.5L V6
- Transmission: Automatic
- Drive: FWD
- Transmission application: BVLA

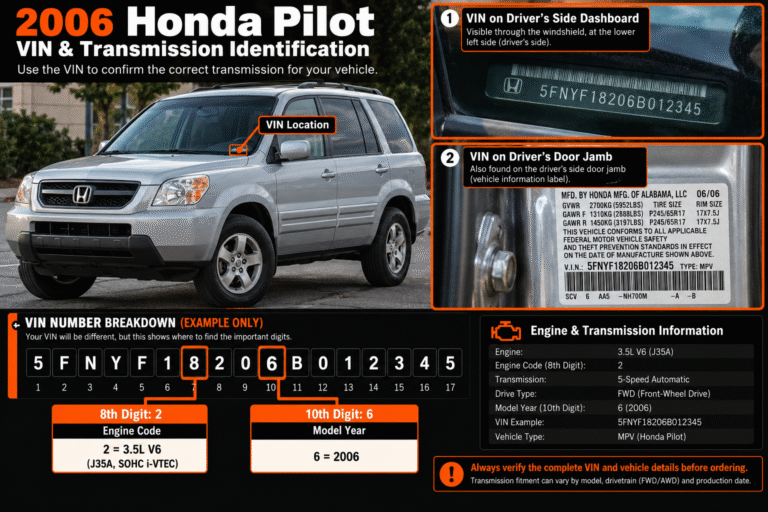

VIN verification
Your VIN can help confirm the exact vehicle configuration.
We recommend providing the complete VIN, rather than relying on a partial VIN or transmission code alone.
2006 Honda Pilot 3.5L FWD Transmission Fitment
This page is specifically designed around the following application:
2006 Honda Pilot
3.5L V6
5-Speed Automatic
Front-Wheel Drive
BVLA
Honda’s 2006 Pilot lineup included both 2WD and VTM-4 models. The drivetrain difference is important because the transmission applications are not the same.
FWD vs AWD
If your Pilot is FWD, this page is targeting the BVLA application.
If your Pilot has VTM-4/AWD, don’t order this transmission based only on the year and engine.
Not sure whether your Pilot is FWD or AWD?
Send us your VIN and we’ll help you identify the correct application.
Signs Your Transmission May Need Attention
Transmission problems can develop gradually or appear suddenly. These common symptoms may indicate that your 4L60E needs inspection, diagnosis or repair.
Delayed Engagement
A noticeable delay when shifting into Drive or Reverse can indicate a hydraulic, fluid or internal transmission issue.
Transmission Slipping
Engine RPM rises without normal acceleration, especially during gear changes or under load.
Harsh Shifting
Hard, abrupt or unusually rough shifts between gears may indicate a control or internal transmission problem.
Loss of Reverse
If Reverse stops working or engages inconsistently, the transmission and shift system should be inspected.
Unusual Noise
Whining, grinding, humming or other abnormal sounds can be signs of internal wear or damage.
Fluid Problems
Low fluid, visible leaks or contaminated transmission fluid can affect shifting and transmission operation.
Important: These symptoms do not always mean the entire transmission needs replacement. Fluid level, linkage, electrical controls, sensors and other components should be checked before choosing a replacement transmission.
Why Choose AutomartAutoparts?
Finding the right used engine or transmission can be stressful, especially when you're not sure about compatibility, availability, or where to find the right replacement. Automart Auto Parts helps make the process simple. We have helped many customers find replacement engines and transmissions for a wide range of vehicles, and our parts specialists are here to help you identify the right option for your vehicle.
With so many used engines for sale online, finding the correct replacement can be difficult. Automart Auto Parts helps make the process simpler by helping customers identify appropriate used engine applications based on their vehicle information.
With multiple warehouse locations across the state, we can help customers connect with available parts closer to their area. Our network and inventory sources allow our team to check available replacement engines and transmissions based on your vehicle's requirements.
Trusted by Customers
We've helped many customers with their replacement engine and transmission needs, providing assistance throughout the process.
Multiple Warehouse Locations
With multiple warehouse locations across the state, our network helps us serve customers in different areas and check for available parts closer to them.
Fitment Assistance
Not sure which engine or transmission you need? Our parts specialists can help verify your vehicle and part information before you move forward.
Availability & Pricing
We can check current availability and provide pricing information based on the replacement part your vehicle requires.
A Simpler Way to Find Your Replacement Part
You don't have to spend hours comparing used motors for sale and trying to determine which engine will work with your vehicle.
Tell our team your vehicle's year, make, model, engine size and VIN when available. Our parts specialists can use that information to help identify the appropriate replacement application and check available options.
Whether you need a used engine for a car, truck or SUV, starting with accurate vehicle information makes it easier to narrow down the correct replacement.
Looking for a 2006 Honda Pilot Transmission?
Need a replacement for your Pilot?
Tell us you’re looking for:
2006 Honda Pilot • 3.5L V6 • 5-Speed Automatic • FWD
We’ll check available inventory and help you determine the correct replacement transmission.
How It Works
Finding the right replacement engine or transmission is simple. Tell us about your vehicle and our parts specialists will help you find the right replacement option.
Tell Us Your Vehicle
Provide your vehicle's year, make, model and engine or transmission information. We may also ask for your VIN to help confirm compatibility.
Tell Us What You Need
Let us know whether you're looking for a used engine, replacement engine, used transmission or replacement transmission.
We Check Availability
Our parts specialists check available inventory and supplier options to help identify a suitable replacement for your vehicle.
Get Your Quote
Once an appropriate option is identified, our team can provide available pricing and relevant part details for you to review.
FAQ
What transmission does a 2006 Honda Pilot use?
The 2006 Honda Pilot uses a 5-speed automatic transmission. The FWD application is associated with the BVLA transmission family.
What engine does the 2006 Honda Pilot have?
The 2006 Pilot uses a 3.5L V6 with 3,471 cc displacement. Honda lists 244 horsepower and 240 lb-ft of torque for the 2006 model.
Is the 2006 Honda Pilot transmission the same for FWD and AWD?
No. The 2006 Pilot was offered in FWD/2WD and VTM-4 configurations, and the transmission applications differ.
What transmission code is used for the 2006 Pilot FWD?
Transmission lookup data identifies the 2006 Honda Pilot 3.5L 5-speed FWD application as BVLA.
Can I use an AWD transmission in my FWD Pilot?
You should not assume that an AWD/VTM-4 transmission is interchangeable with the FWD unit. Verify the exact application before purchasing.
How do I know if my Pilot is FWD?
Your vehicle documentation, VIN and drivetrain information can help determine the configuration. If you're unsure, send us your VIN and we'll help check.
Need a 2006 Honda Pilot 3.5L FWD Transmission?
Don’t guess between FWD and AWD applications.
Send us your VIN and vehicle information, and we’ll help you identify the correct replacement transmission.
VIN-based fitment assistance • Used replacement options • Nationwide availability
